FUTURE-PROOFING

Backward compatible with 4G (LTE CAT 20) and 3G network technologies

// RUTX50 is your future-proof, multi-network industrial router, offering 5G mobile communication for high-speed and data-heavy applications.

// 5G dual SIM cellular communication combined with 5 Gigabit Ethernet ports and dual-band Wi-Fi enables reliable ultra-low latency data transfer.

// The power of 5G technology, combined with a wide range of interfaces and industrial hardware features, ensures adaptability for future upgrades and expansions.

// RUTX50 comes with the RutOS, which provides advanced security features and specialized industrial protocols for a wide range of professional application scenarios, and is compatible with our Remote Management System (RMS), for optimized remote management and monitoring capabilities of large fleets of devices.

MOBILE

Mobile module

5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO), 900/600 Mbps UL (2x2); 4G (LTE) – LTE Cat 20 2.0Gbps DL, 200Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL

Status

Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/received, connected band, IMSI, ICCID.

SMS/Call

SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, Call utilities

USSD

Supports sending and reading Unstructured Supplementary Service Data messages

Black/White list

Operator black/white list

Band management

Band lock, Used band status display

APN

Auto APN

Bridge mode

Direct connection (bridge) between mobile ISP and device on LAN

Passthrough

Gateway assigns its mobile WAN IP address to another device on LAN

Multiple PDN

Possibility to use different PDNs for multiple network access and services

WIRELESS

Wireless mode

802.11b/g/n/ac Wave 2 (WiFi 5) with data transmission rates of up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)

WiFi security

WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation

ESSID

ESSID stealth mode

WiFi users

Up to 150 simultaneous connections

Wireless Hotspot

Captive portal (Hotspot), internal/external Radius server, built-in customizable landing page

Wireless mesh/roaming

Wireless mesh (802.11s), fast roaming (802.11r)

ETHERNET

WAN

1 x WAN port (can be configured as LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

LAN

4 x RJ45 port, 10/100/1000 Mbps, supports auto MDI/MDIX crossover

NETWORK

Network protocols

TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, PPP, PPPoE, SSH, DHCP, SNMP, MQTT, Wake on LAN (WOL)

Routing

Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP)

Connection monitoring

Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

Firewall

Port forwards, traffic rules, custom rules

DHCP

Static and dynamic IP allocation

DDNS

Supported >25 service providers, others can be configured manually

SSHFS

Possibility to mount remote file system via SSH protocol

SECURITY

Authentication

Pre-shared key, digital certificates, X.509 certificates

Firewall

Pre-configured firewall rules can be enabled via the WebUI, unlimited firewall configuration via CLI; NAT; NAT-T

Attack prevention

DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention ( SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

VLAN

Port and tag-based VLAN separation

Mobile quota control

Set up custom data limits for SIM card

WEB filter

Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only

Access control

Flexible access control of TCP, UDP, ICMP packets, MAC address filter

VPN

OpenVPN

Multiple clients and a server can run simultaneously, 12 encryption methods

OpenVPN Encryption

DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC

GRE tunnel

GRE Tunnel

IPsec

IKEv1, IKEv2, supports up to 5 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256)

SSTP

SSTP client instance support

STUNNEL

Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code

DMVPN

Method of building scalable IPsec VPNs

PPTP, L2TP

Client/Server services can run simultaneously, L2TPv3 support

WireGuard

WireGuard VPN client and server support

ZeroTier

ZeroTier VPN

MODBUS TCP SLAVE

ID filtering

Respond to one ID in range [1;255] or any

Allow remote access

Allow access through WAN

Custom registers

MODBUS TCP custom register block, which allows to read/write to a file inside the router, and can be used to extend MODBUS TCP slave functionality

MODBUS TCP MASTER

Supported functions

01, 02, 03, 04, 05, 06, 15, 16

Supported data formats

8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

MQTT GATEWAY

Gateway

Allows sending commands and receiving data from MODBUS Master through the MQTT broker

DNP3

Supported modes

TCP Master, DNP3 Outstation

DATA TO SERVER

Protocols

HTTP(S), MQTT, Azure MQTT, Kinesis

IoT PLATFORMS

Clouds of things

Allows monitoring of: Device data, Mobile data, Network info, Availability

ThingWorx

Allows monitoring of: WAN Type, WAN IP Mobile Operator Name, Mobile Signal Strength, Mobile Network Type

Cumulocity

Allows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP

Azure IoT Hub

Can send device IP, Number of bytes send/received/ 3G connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, Sim State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server

MONITORING & MANAGEMENT

WEB UI

HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log

FOTA

Firmware update from server, automatic notification

SSH

SSH (v1, v2)

SMS

SMS status, SMS configuration, send/read SMS via HTTP POST/GET

CALL

Reboot, Status, Mobile data on/off, Output on/off

TR-069

OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem

MQTT

MQTT Broker, MQTT publisher

SNMP

SNMP (v1, v2, v3), SNMP trap

JSON-RPC

Management API over HTTP/HTTPS

MODBUS

MODBUS TCP status/control

RMS

Teltonika Remote Management System (RMS)

SYSTEM CHARACTERISTICS

CPU

Quad-core ARM Cortex A7, 717 MHz

RAM

256 MB (100 MB available for userspace)

FLASH storage

256 MB (80 MB available for userspace)

FIRMWARE / CONFIGURATION

WEB UI

Update FW from file, check FW on server, configuration profiles, configuration backup

FOTA

Update FW

RMS

Update FW/configuration for multiple devices at once

Keep settings

Update FW without losing current configuration

FIRMWARE CUSTOMIZATION

Operating system

RutOS (OpenWrt based Linux OS)

Supported languages

Busybox shell, Lua, C, C++

Development tools

SDK package with build environment provided

LOCATION TRACKING

GNSS

GPS, GLONASS, BeiDou, Galileo and QZSS

Coordinates

GNSS coordinates via WebUI, SMS, TAVL, RMS

NMEA

NMEA 0183

Server software

Supports server software: TAVL, RMS

Geofencing

Multiple configurable geofence zones

USB

Data rate

USB 2.0

Applications

Samba share, USB-to-serial, Modbus gateway

External devices

Possibility to connect external HDD, flash drive, additional modem, printer

Storage formats

FAT, FAT32, NTFS

INPUT/OUTPUT

Input

1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high

Output

1 x Digital Output, Open collector output, max output 30 V, 300 mA

Events

SMS, Email, RMS

I/O juggler

Allows setting certain I/O conditions to initiate event

POWER

Connector

4-pin industrial DC power socket

Input voltage range

9 – 50 VDC, reverse polarity protection, surge protection >51 VDC 10us max

PoE (passive)

Mode B, LAN1 Port, 9 - 50 VDC

Power consumption

Idle: <4 W, Max: <18 W

PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)

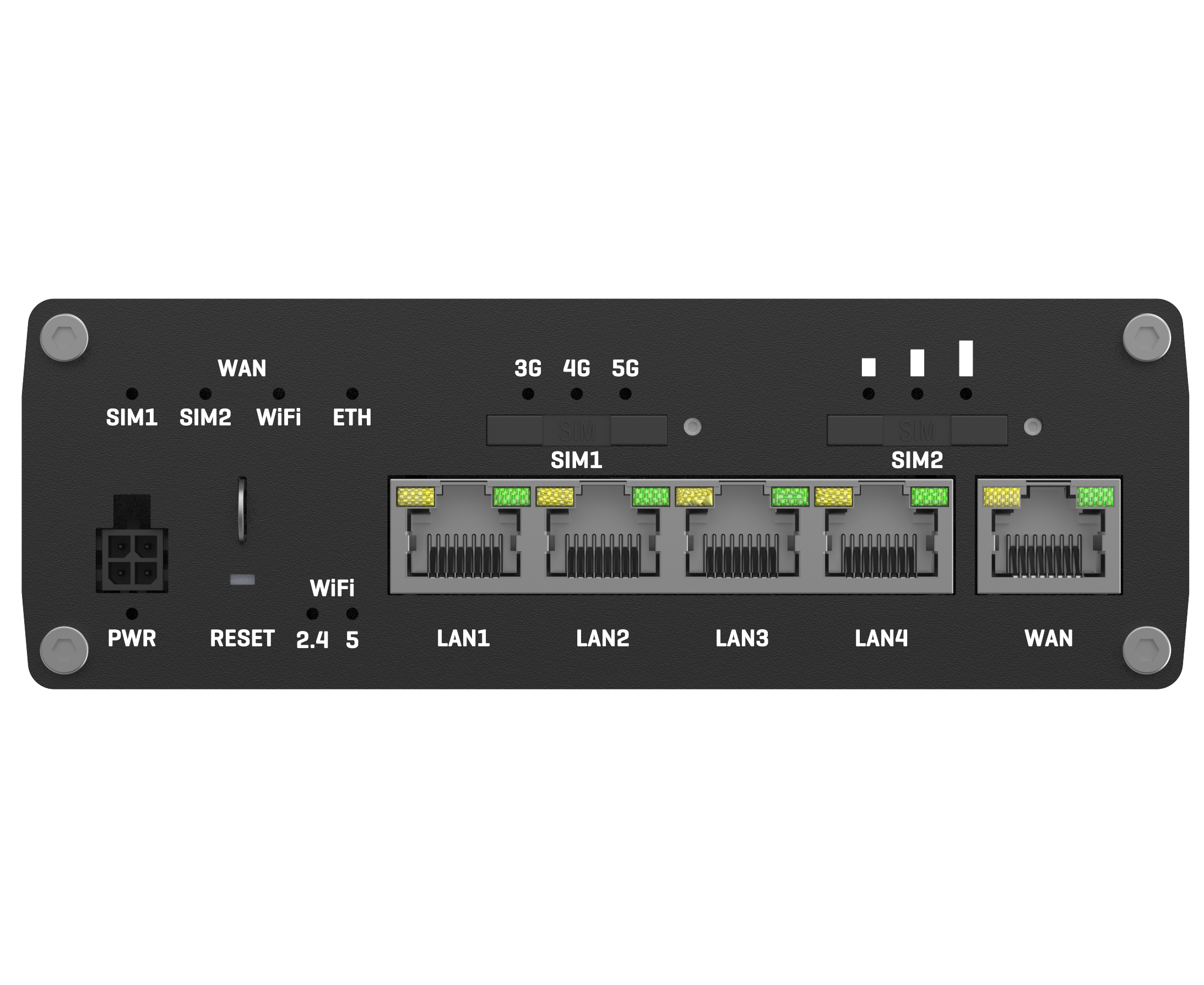

Ethernet

5 x RJ45 ports, 10/100/1000 Mbps

I/Os

1 x Digital Input, 1 x Digital Output on 4-pin power connector

Status LEDs

3 x connection status LEDs, 3 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1x Power LED, 2 x 2.4G and 5G WiFi LEDs

SIM

2 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V

Power

1 x 4-pin DC power connector

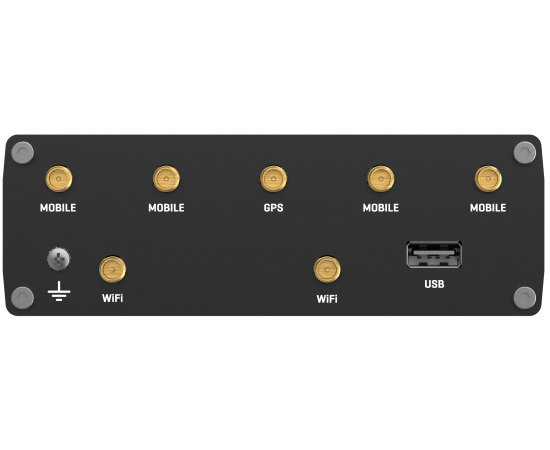

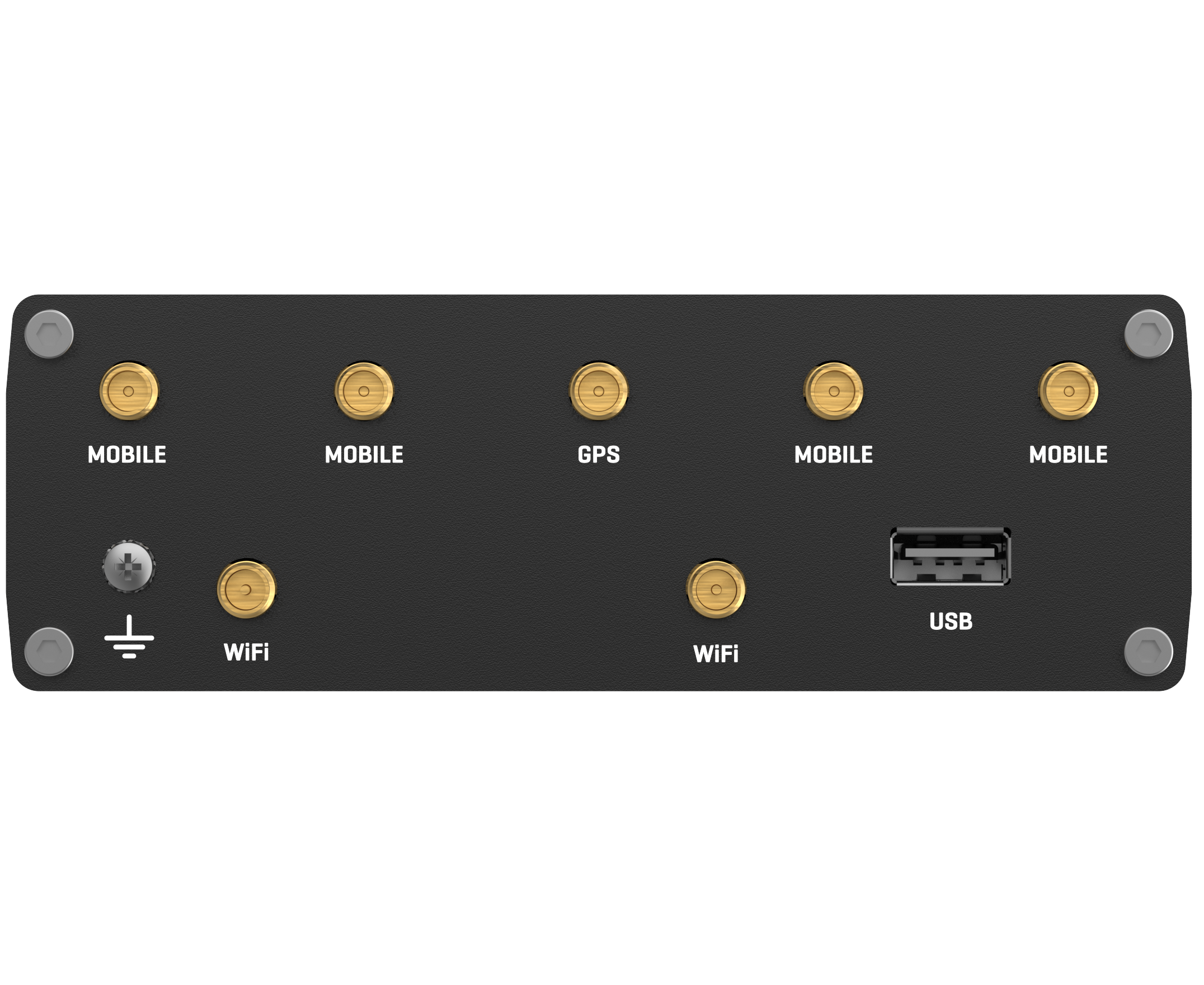

Antennas

4 x SMA for Mobile, 2 x RP-SMA for WiFi, 1 x SMA for GNSS

USB

1 x USB A port for external devices

Reset

Reboot/User default reset/Factory reset button

Other

1 x Grounding screw

PHYSICAL SPECIFICATION

Casing material

Aluminum housing

Dimensions (W x H x D)

132 x 44.2 x 95.1 mm

Weight

533 g

Mounting options

DIN rail (can be mounted on two sides), flat surface placement

OPERATING ENVIRONMENT

Operating temperature

-40 °C to 75 °C

Operating humidity

10 % to 90 % non-condensing

Ingress Protection Rating

IP30
