Shelly Wall Display Black+BLU H&T Black (SAWD1)
Κωδικός e-Wireless: 1337.008

€147.56

χωρίς ΦΠΑ €119.00

Σε Απόθεμα

Ποσότητα:

+ −

Αποστολές & Επιστροφές

Τρόποι πληρωμής

Γιατί e-Wireless;

Datasheet

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Για να σας λύνονται όλες οι τεχνικές απορίες

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

E-WIRELESS

Αναλυτική Παρουσίαση

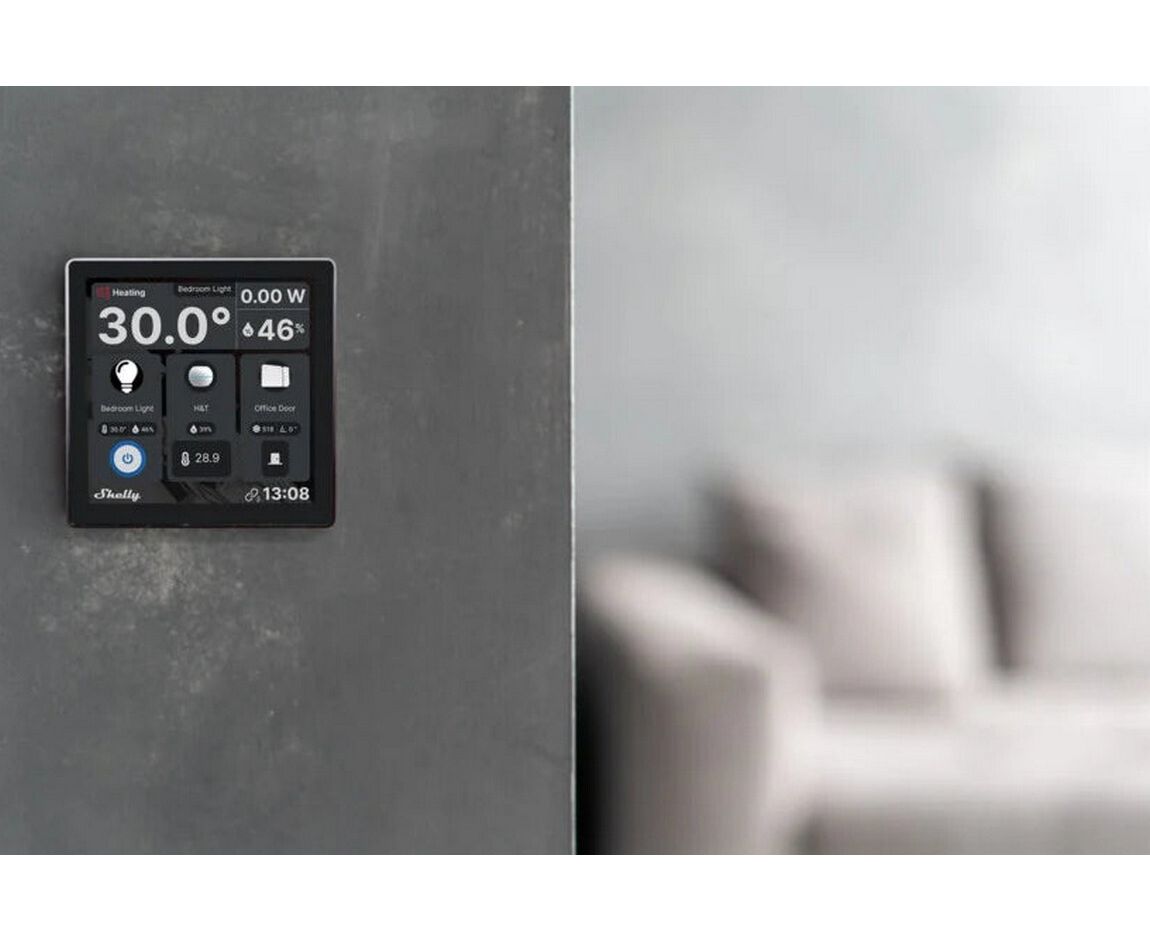

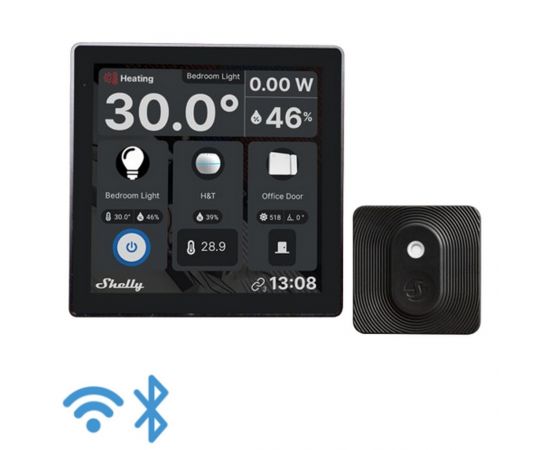

Shelly Wall Display (the Device) is a smart home control panel with a 4” color display and load circuit switching functionality.

Touch-sensitive 4” color display
Easy navigation and customizable home screen
Integrated relay for appliance control
Integrated temperature, humidity, and light sensors
Power consumption monitoring of all devices in a room in your Shelly Smart Control account

Residential
MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)
Light commercial (small office buildings, small retail/restaurant/gas station, etc.)
Government/municipal
University/college

N/A

N/A

Resistive (incandescent bulbs, heating appliances)
Capacitive (capacitor banks, electronic equipment, motor starting capacitors)
Inductive with RC Snubber (LED light drivers, transformers, fans, refrigerators, air-conditioners, washing machines, tumble dryers)

Touch-sensitive 4” color display with fully-customizable layout and following indications:

Quantity	Value
Physical
Size (HxWxD):	85x85x30 mm / 3.35x3.35x1.18 inch
Weight:	180 g / 6.35 oz
Screw terminals max torque:	0.4 Nm / 4.43 lbin
Conductor cross section:	0.5 to 2.5 mm² / 20 to 14 AWG (solid, stranded, and bootlace ferrules)
Conductor stripped length:	6 to 7 mm / 0.24 to 0.28 in
Mounting:	Wall box
Shell material:	Plastic, aluminum, glass
Shell color:	Black or white
Environmental
Ambient working temperature:	-20 °C to 40 °C / -5 °F to 105 °F
Humidity:	30 % to 70 % RH
Max. altitude:	2000 m / 6562 ft
Electrical
Power supply:	230 VAC, 50/60Hz
Power consumption:	< 1 W
Output circuits ratings
Max. switching voltage:	230 VAC
Max. switching current:	5 A
Sensors, meters
Internal-temperature sensor:	No
Ambient temperature sensor	Yes
Humidity sensor:	Yes
Light sensor:	Yes
Radio
Wi-Fi
Protocol:	802.11 b/g/n
RF band:	2401 - 2495 МHz
Max. RF power:	< 20 dBm
Range:	Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
Bluetooth
Protocol:	4.2
RF band:	2400 - 2483.5 MHz
Max. RF power:	< 4 dBm
Range:	Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
Microcontroller unit
CPU:	MTK6580
RAM:	1 GB
Flash:	8 GB
Firmware capabilities
Schedules:	20
Webhooks (URL actions):	20 with 2 URLs per hook…
Scripting:	No
MQTT:	Yes
