Shelly Plus Uni (SNSN-0043X)
Κωδικός e-Wireless: 1337.011

€18.48

χωρίς ΦΠΑ €14.90

Σε Απόθεμα

Ποσότητα:

+ −

Αποστολές & Επιστροφές

Τρόποι πληρωμής

Γιατί e-Wireless;

Datasheet

Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

E-WIRELESS

Αναλυτική Παρουσίαση

Short description

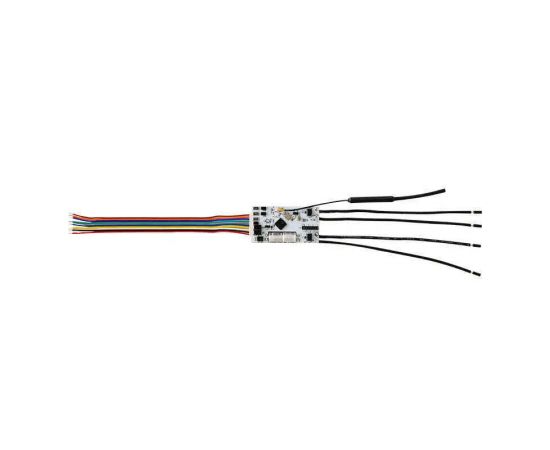

Shelly Plus Uni (the Device) is a small form factor smart universal module featuring two solid state relays with potential free contacts, pulse counter, analog and two digital inputs. It allows remote control of electrical devices via mobile phone, tablet, PC or home automation system. It can operate standalone on a local Wi-Fi network or it can also be controlled via cloud-based home automation services.

Shelly Plus Uni can be accessed, controlled, and monitored remotely from any place where the User has internet connectivity, as long as the device is connected to a Wi-Fi router and the Internet.

Shelly Plus Uni has an embedded Web Interface which can be used to monitor and control the device, as well as adjust its settings.

Main applications

Residential
MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)
Light commercial (small office buildings, small retail/restaurant/gas station, etc.)
Government/municipal
University/college

Integrations

Google
Samsung SmartThings
Alexa

Simplified internal schematics

Device electrical interfaces

Power supply

AC/DC power supply - VAC1 and VAC2
DC power supply - +5 VDC and GND

Inputs

1 analog input - ANALOG IN
1 1-Wire data input - DATA
1 pulse counter input - COUNT IN
2 digital inputs - IN1 and IN2

Outputs

1 sensors power supply output - SENSOR VCC
2 potential-free contacts solid-state relay outputs - OUT1 and OUT2

Addon interface

Shelly proprietary serial interface

Connectivity

Wi-Fi
Bluetooth (for inclusion purposes)

Safety features

PCB coating film

User interface

Inputs

One (Reset) button
- Press and hold for 5 seconds to enable Device access point and Bluetooth connection.
- Press and hold for 10 seconds to factory reset the Device.

Outputs

LED (monocolor) indication
- AP (Access Point) enabled and Wi-Fi disabled:
  1 second ON / 1 second OFF
- Wi-Fi enabled, but not connected to a Wi-Fi network:
  1 second ON / 3 seconds OFF
- Connected to a Wi-Fi network:
  Constantly ON
- Cloud is enabled, but not connected:
  1 second ON /5 seconds OFF
- Connected to Shelly Cloud:
  Constantly ON
- OTA (Over the Air Update):
  ½ sec ON / ½ second OFF
- Button pressed and held for 5 seconds:
  ½ second ON / ½ second OFF
- Button presses and held for 10 seconds:
  ¼ second ON / ¼ second OFF

The list above starts with the initial device status and the lowest priority. Every next state cancels the previous one.

Specifications

Type	Value
Physical
PCB size (LxWxH):	40x21x7 mm / 1.57x0.83x0.28 in
Weight:	8.5 g / 0.3 oz (with the cables)
Environmental
Ambient temperature:	-20 °C to 40 °C / -5 °F to 105 °F
Humidity	30 % to 70 % RH
Electrical
Power supply:	8-24 VAC 9-28 VDC 5 VDC (stabilized, via +5 VDC and GND)
Power consumption:	< 1 W
Input circuits ratings
Digital inputs resistance:	50 kΩ
Digital inputs triggering voltage:	1.5 V (active low level)
Output circuits ratings
Max switching voltage:	30 V
Max switching current:	300 mA
Sensors, meters
Voltmeter:	0-15 VDC / 0-30 VDC (Two-range)
Voltmeter accuracy:
Pulse counter input triggering voltage:	1.5 V (active low level)
Pulse counter max frequency:	1 kHz
External sensors supported:	Single DHT22 or up to five DS18B20
Radio
RF band:	2400 - 2495 MHz
Max. RF power:	<20 dBm
Wi-Fi protocol:	802.11 b/g/n
Wi-Fi Range:	Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
Bluetooth Protocol:	4.2
Bluetooth Range:	Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
MCU
CPU:	ESP32-U4WDH
Flash:	4 MB
Firmware capabilities
Schedules:	20
Webhooks (URL actions):	20 with 5 URLs per hook
Scripting:	Yes
MQTT:	Yes
CoAP:	No

Basic wiring diagram

NOTICE! Shelly Plus Uni inputs are different from the previous Shelly Uni ones.

Legend

VAC1	Red	8-24 VAC / 9-28 VDC power supply input 1
VAC2	Black	8-24 VAC / 9-28 VDC power supply input 2
ANALOG IN	White	Analog input
SENSOR VCC	Yellow	Power supply for 1-Wire sensors
DATA	Blue	1-Wire data line
+ 5 VDC	Gray	5 VDC power supply positive input
GND	Green	5 VDC power supply ground input and Sensor ground
COUNT IN	Purple	Counter input
IN1	Orange	Digital input 1
IN2	Brown	Digital input 2
OUT 1	Black	Solid-state relay 1 terminals
OUT 2	Black	Solid-state relay 2 terminals
