RF Elements HG3-TP-A60, Asymmetrical Horn Antenna with TwistPort, 5GHz, 17dBi, 60°

Κωδικός e-Wireless: 1020.064

Product description

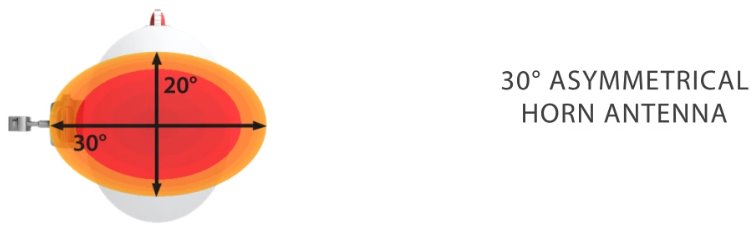

Asymmetrical Horn TP Antennas have unique beam shape. The beam cross-section in bore sight is elliptical: wide in azimuth and narrow in elevation plane. This is useful for deployments where where asymmetrical beam shape delivers better coverage.

TwistPort Connector

Asymmetrical Horn TP Antennas feature our industry-changing TwistPortTM connector, a patent-pending quick-locking waveguide port. TwistPortTM is virtually lossless: there are no coaxial connectors or cables that attenuate signal. Connecting radios is ingeniously simple - “twist and lock” - with a single hand!

No Side Lobes

Asymmetrical Horn TP Antennas have naturally depressed side lobes: they focus energy into single main beam. Absence of side lobes enables excellent noise immunity of Asymmetrical Horn TP Antennas.

Perfect Coverage Pattern

Mainstream patch array sector antennas have radiation pattern extremely wide in azimuth and extremely flat in elevation plane. If an AP is deployed on a tall tower, customers near the tower suffer from low AP signal level. Asymmetrical Horn TP Antennas provide valuable extra degrees in elevation beam width, shrinking the null zone while preserving increased gain for long range performance.

Breakthrough Scalability: Expanded

RF elements® Horn TP Antennas provide extraordinary scalability options. Asymmetrical Horn TP Antennas are new addition to the tool box. Unique beam performance, precise radiation patterns and increased gain push system scalability even further.

Cross-Platform Compatibility

Wide range of TwistPortTM Adaptors enables connection of the most popular connectorized radios of third party vendors, such as UBNTTM, MimosaTM, MikroTikTM or Cambium NetworksTM, directly to any TwistPortTM-enabled antenna.

Innovative Bracket

Asymmetrical Horn TP Antennas feature an innovative mounting system. The mount is separated from the antenna, making the installation and adjustment quick and easy.

Package contains

• Antenna
• Precision holder
